GeoTextile Mattress is a three dimensional permeable flexible formwork made with high strength GeoTextile. It is made of bonded filament and can be filled with concrete mortar or sand slurring depending on the application.

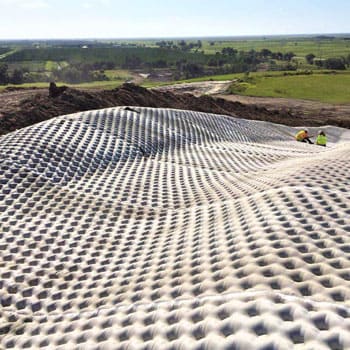

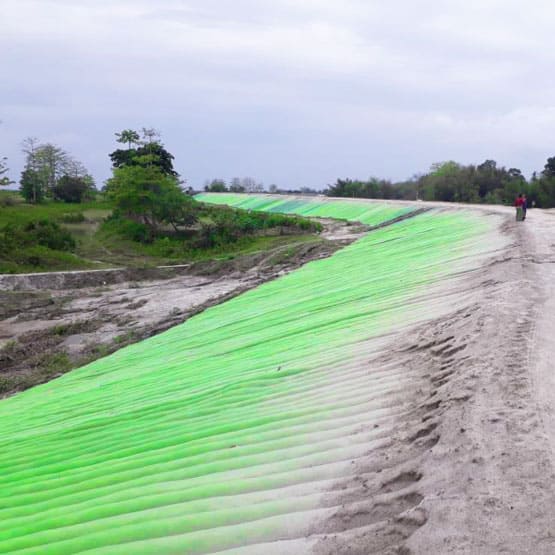

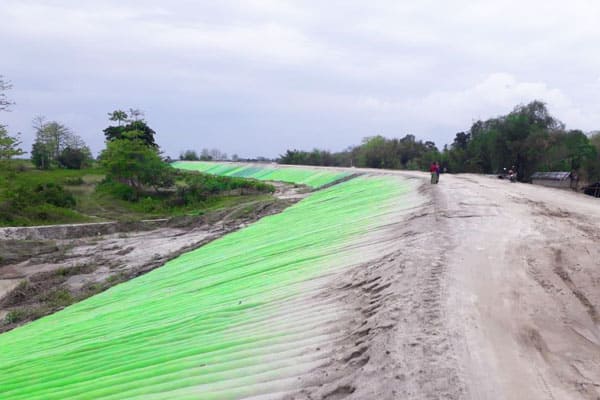

Sand filled mattress is designed for high-velocity river protection. This is a flexible Erosion Control System that utilizes filtercloth as pockets for granular infill materials. Its mobility and effectiveness have made this erosion control system the most popular erosion control product in wet areas. After installation, it provides instant and permanent Embankment Protection while bringing in a green aesthetic look with vegetation.
Jeevan Geotex is one of the biggest Indian Sand Filled Mattress Manufactures that provide effective Embankment Protection solutions.
Cleaning ground surface of the site
Cutting GeoMat to specific size and laying it on target slope
Anchoring the GeoMat at the top of the slope and at the toe
Unrolling it parallel to the slope
Overlapping the geomat as specified on the design drawing and anchoring it

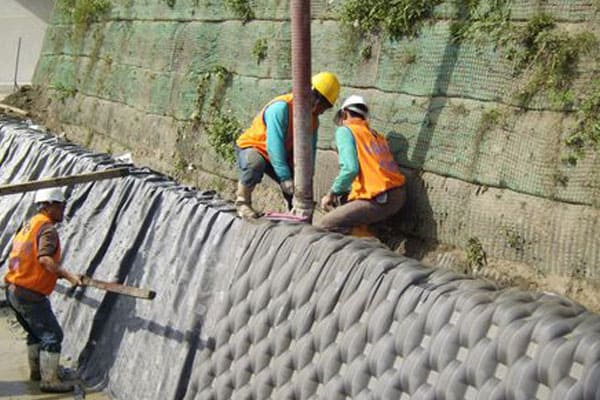

Pumping sand slurry in it
| Peak height 33cm |
| Spacing 35cm |
| Width 3.85 m (flat without filling) |
| Lenghth 40m |
| Colour - green on exposed side |
Easy and rapid transportation and installation. Strong, flexible and lightweight, so it can be easily transported to site and doesnot required much skilled manpower
Highly economical because of its inexpensive polymeric material and less complex installation
Saves time because it is installed very simply, allows easy construction, and thus the project is completed quickly
Replaces shotcrete slope protection engineering method with a more environment-friendly method
