Biaxial Specification
| Available Width | Upto 4Mtr |
| Quality | 15/15KN 60/60KN |
| Apextime Size | From 28mm - 65mm |
GeoGrids are primarily used in various applications for civil engineering and mining like soil stabilization,reinforcement, amongst others. GeoGrids are mainly two-dimensional and can be provided in soft or hard forms.
GeoGrid PP is a family of integrally formed biaxial geogrids manufactured from superior grades of polypropylene using precisely controlled punching and drawing processes. Stringent controls on raw materials and manufacturing process ensures a high-quality product with consistent geometry, integral junctions, superior mechanical properties and excellent durability.
| Available Width | Upto 4Mtr |
| Quality | 15/15KN 60/60KN |
| Apextime Size | From 28mm - 65mm |
| 80/900/30 140/200/30 |
| Width - 2 Mtr |
The GeoGrid, when placed between two dissimilar materials, avoids their mixing and maintains their integrity and functionality.

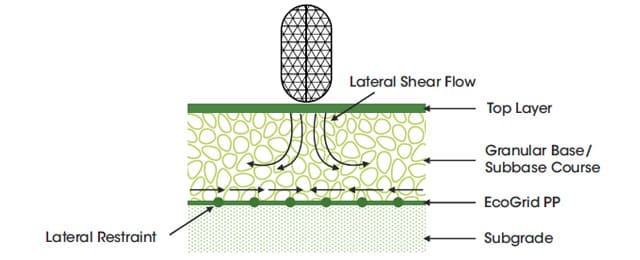

The GeoGrid develops tensile forces that maintain high stiffness in the granular material by effectively controlling cyclic load-induced laterial deformations.

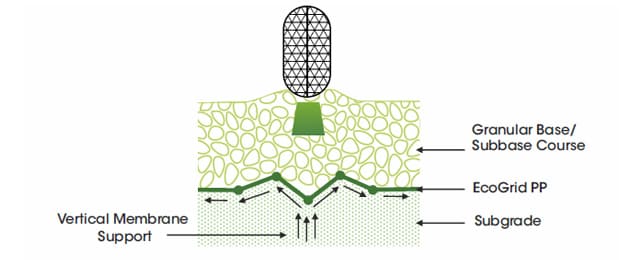

The gravel gets interlocked within the GeoGrid aperture thereby avoiding displacement.

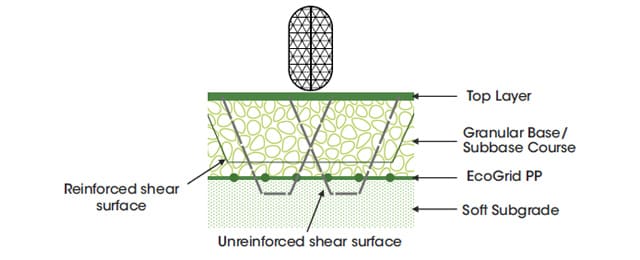

The GeoGrid provides an increased bearing capacity margin of safety by intercepting the potential failure surfaces that develop under vertical loads.
Functions as a separator - preserves the designed thickness and integrity of granular layers placed over weak soils

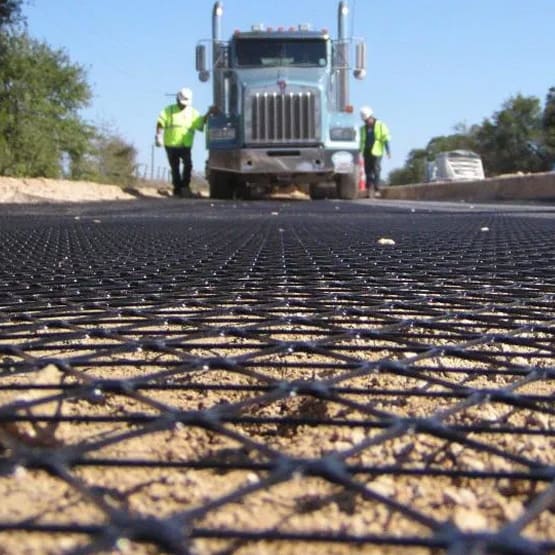

Acts as a working platform underlying over weak soils by supporting the load of construction equipment, preventing excessive deformation of subgrade and facilitating proper compaction of overlying granular layers
Enhances the structural performance of granular subbase and base courses in unpaved roads as well as in

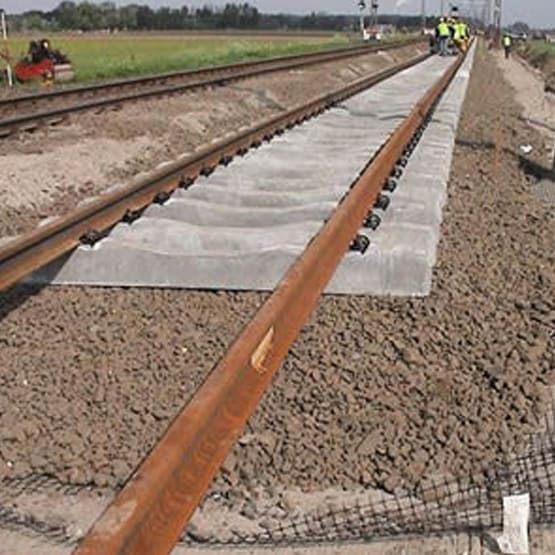

Improves the performance of ballast and sub-ballast/blanket layers of railway trackbeds
Strengthens the foundations of hard standages, factory and warehouse floors and storage areas
Improves the performance of load transfer platforms over pile/column supported embankments
Span voids in subsidence prone areas such as regions affected by mining activity and sink holes etc
Prevents surficial slope failures when used as secondary reinforcement
